DTZY193

Share:



Summary

DTZY193 type three-phase four wire control of smart meter costs (hereinafter referred to as the electric energy meter) using large scale integrated circuit, application of digital sampling technology, according to industrial users of electricity management needs of the design and manufacture of modern advanced level meter. Electric energy meter with GB/T 17215.321-2008 "static watthour meter (1 and 2)," GB/T 17215.323-2008 "static reactive power meter (2 and 3)," GB/T 17215.301-2007 "multi-function meter", "the special requirements of DL/T645-2007 multifunctional electric energy meter communication protocol" Q/GDW, 1354 - 2013 "smart meter function standard", Q / GDW 362-2009 "1 stage cost control three-phase intelligent electric energy meter technology standard" standard requirements.

Main features

The utility model has the functions of positive and negative active power and four quadrant reactive energy metering, and can be combined with active power and reactive power.

The utility model is characterized in that the utility model has the functions of time sharing metering, and can accumulate, store, peak, peak, flat and valley active power and reactive power respectively according to the corresponding time interval

With phase separation active power metering function.

Measure the maximum demand, the maximum demand of the time interval, the date and time of the occurrence, and store the data with the time scale.

The utility model has two sets of time zone tables which can be programmed randomly, a set of time table and 254 public holidays, wherein each time zone table is respectively provided with a time zone of a period of 14 years, and the time table of each period is respectively provided with the time table of each of the 8 periods, the time interval of the 14 periods, and the rate of each of the 4 periods

It has the functions of voltage, current, power, power factor, current demand and so on

With timing, instantaneous, agreement, the whole point and the freezing of the day, frozen data model can be set

Infrared communication, RS485 communication interface, easy to exchange data with the outside world.

Electricity calculation done in remote sale of electricity management system in electric energy meter can sell electricity to receive remote management through the RS485 system, the brake allows switching, ESAM data reading instruction, instruction through the password authentication and strict safety certification.

With the exception of abnormal voltage, current, power off, reset, school, programming, open table cover, start button cover and other event recording function.

With load curve recording function, the user can set the time interval for the selected six types of data content rolling records, interval time can be set at 1 min ~ 60min.

Main technical parameters

Item

Technical data

Accuracy class

active 1 class、reactive 2 class

Reference voltage(Un

3×220/380V

Reference current(In

1.5(6)A、5(20)A、5(30)A、5(60)A、10(40)A、10(50)A、20(80)A、10(100)A

Reference frequency

50Hz

Specified operating voltage range

0.9Un1.1Un

Extended operating voltage range

0.8Un1.2Un

power dissipation

Voltage line:≤2W/5VA current line:≤2.5VA

In the time zone table number

≤2

Day table number

≤2

Rate number

≤4

Year time zone

≤14

Date time table

≤8

Day period

≤14

Display mode

LCD

Clock accuracy

≤0.5s/d23

Clock backup battery

3.6VDC ( battery capacity ≥1.2Ah

Infrared communication parameters

The default baud rate 1200bps

RS485 Baud rate

default 2400bps,Can be set to 1200bps2400bps4800bps9600bps

Outline dimension

290mm×170mm×85mm(In order to prevail in kind)

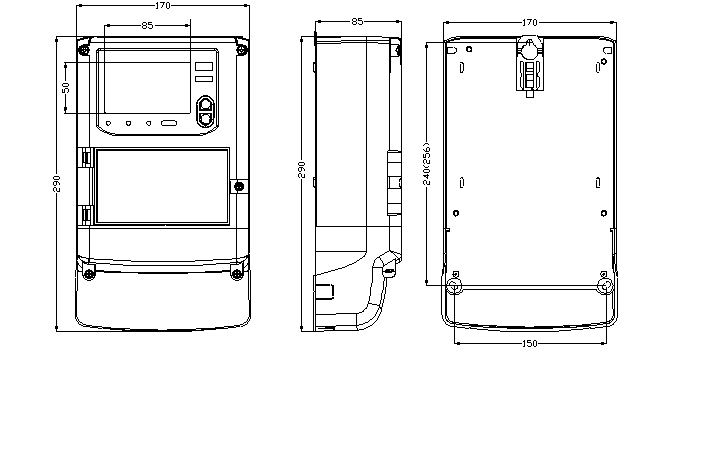

Outline overall and installing dimensions



DTZY193 Last DTZY193 Next
