DTS193 7P Rail type

Share:



Summary

Main technical parameters

Item

Technical data

Accuracy class

1 class

Voltage specification

3×220/380V3×57.5/100V

Current specifications

3×1.5(6)A、3×5(20)A、3×5(30)A、3×10(50)A、3×10(60)A、3×15(90)A、3×20(80)A、3×20(100)A、3×5(65)A、3×5(100)A

Reference frequency

50Hz60Hz

Operating voltage range

Limiting operating voltage range:0.7Un1.3Un

Operating temperature range

Applicable operating temperature range:-25 ~+55

Working environment humidity

relative humidity95%

Overall power consumption

≤2W/10VA

Outline dimension

88mm×125mm×68mm(In order to prevail in kind)

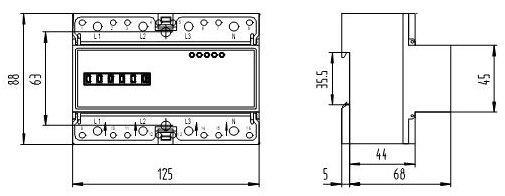

Outline overall and installing dimensions



wiring diagram

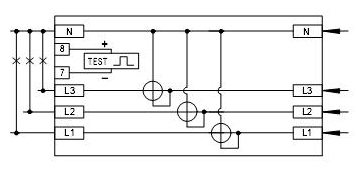

Direct access

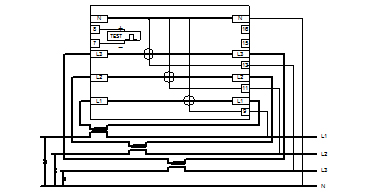

Mutual inductance type access
