DDZY193
Share：
Summary
DDZY193 type intelligent control of single-phase energy meter fees (hereinafter referred to as the electric energy meter) is a large-scale integrated circuit, the application of digital sampling technology, according to the national grid "overall unified strong smart grid construction requirements, based on State Grid smart meter series standards on the development of a new generation of intelligent electric energy meter. Mainly used for single-phase residential users in smart grid electric energy metering. The main performance index of electric energy meter with GB/T 17215.211 - 2006 "AC Measuring Equipment General requirements, tests and test conditions - Part eleventh: measurement equipment," GB/T 17215.321 "- 2008 AC measuring equipment - Part twenty-first: Particular requirements for stationary power meter (1 and 2)," GB/T 17215.301-2007 "multifunctional electric special requirements", GB/T can form 15284-2002 "multi rate electric energy meter, DL/T special requirements" 614 - 2007 "multi-function meter", DL/T 645 - 2007 "multi function watt hour meter communication protocol", Q/GDW 1355 - 2013 "single phase intelligent electric energy type, Q/GDW 1354 phenotype specification" - 2013 "intelligent the electric energy meter function standard", Q/GDW 1364 - 2013 "single phase intelligent electric energy meter technical specifications" and Q/GDW 1365 - 2013 "smart meter information exchange security certification standards related technical specifications" Requirement。DDZY193 type intelligent control of single-phase energy meter fees (hereinafter referred to as the electric energy meter) is a large-scale integrated circuit, the application of digital sampling technology, according to the national grid "overall unified strong smart grid construction requirements, based on State Grid smart meter series standards on the development of a new generation of intelligent electric energy meter. Mainly used for single-phase residential users in smart grid electric energy metering. The main performance index of electric energy meter with GB/T 17215.211 - 2006 "AC Measuring Equipment General requirements, tests and test conditions - Part eleventh: measurement equipment," GB/T 17215.321 "- 2008 AC measuring equipment - Part twenty-first: Particular requirements for stationary power meter (1 and 2)," GB/T 17215.301-2007 "multifunctional electric special requirements", GB/T can form 15284-2002 "multi rate electric energy meter, DL/T special requirements" 614 - 2007 "multi-function meter", DL/T 645 - 2007 "multi function watt hour meter communication protocol", Q/GDW 1355 - 2013 "single phase intelligent electric energy type, Q/GDW 1354 phenotype specification" - 2013 "intelligent the electric energy meter function standard", Q/GDW 1364 - 2013 "single phase intelligent electric energy meter technical specifications" and Q/GDW 1365 - 2013 "smart meter information exchange security certification standards related technical specifications" Requirement.
Main features
■The design and construction of the electric energy meter can ensure that it does not cause any danger under the rated condition
■With the positive and negative total, sharp peak flat valley rating period power measurement, and set the combination of active and colleagues recorded programming events and cleared events, school time, power down, pull open the cover, closing event
■With sharp, peak, flat, Valley 4 rates, the 14 day period, the minimum interval of 15 minutes
■Through the infrared interface and the RS485 interface, respectively, to communicate with the handheld computer and PC machine to complete the programming and meter reading
■The LCD display shows the total circulation or by peak flat valley electricity and electricity last month, last month, convenient meter reading, power display is 6 bit integer,2 decimal
■Record the total electricity consumption of the 12 settlement days and the electric energy data of each rate
■In the remote sale of electricity tariff calculation system, electric energy meter receiving remote sale of electricity system issued a pull gate, allows switching, ESAM data reading instruction, through the password authentication and strict safety certification. Under the condition of ensuring safety, the electrical parameters can be set
■Alarm output
Main technical parameters
|
Item |
Technical data |
|
|
Accuracy class |
1class、2class |
|
|
Voltage specification |
220V |
|
|
Current specifications |
1.5(6)A、2.5(10)A、5(20)A、5(30)A、5(40)A、5(50)A、5(60)A、10(40)A、10(50)A、10(60)A、15(60)A、15(90)A、20(80)A、10(100)A、20(100)A、30(100)A |
|
|
Reference frequency |
50Hz |
|
|
Specified operating voltage range |
0.9Un～1.1Un |
|
|
Extended operating voltage range |
0.8Un～1.15Un |
|
|
Limiting operating voltage range |
0Un～1.15Un |
|
|
Voltage loop power |
Non communication state |
≤1.5W&10VA |
|
Communication status |
≤3W&12VA |
|
|
Current loop power |
≤1VA |
|
|
Data storage time after power outage |
≥10 years |
|
|
In the time zone table number |
2 |
|
|
Day table number |
2 |
|
|
Rate number |
4 |
|
|
Day period |
14 |
|
|
Display mode |
LCD |
|
|
Clock accuracy |
≤0.5s/d（23℃） |
|
|
Clock backup battery |
3.6VDC （ battery capacity ≥1.2Ah） |
|
|
Infrared communication parameters |
The default baud rate 1200bps |
|
|
RS485 Baud rate |
default 2400bps，Can be set to 1200bps、2400bps、4800bps、9600bps。 |
|
|
Outline dimension |
160mm×112mm×58mm（In order to prevail in kind） |
|

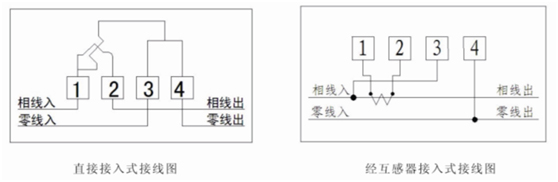

Outline overall and installing dimensions
