DDS193 4P Rail type

Share:



Summary

Single phase electronic  (rail) energy meter system our company adopts microelectronics technology of electric energy measurement; imported special large scale integrated circuit, a novel single-phase digital sampling technology and SMT technology and other advanced technology research and development of electronic power meter. The power meter is in full compliance with international standards and national standards GB/T17215.321-2008 IEC62053-21 1 or related technical level 2 single-phase energy meter; it can accurately and directly measure the electric energy, can display the total electricity consumption information; has good reliability, small volume, light weight, aesthetic appearance, and has anti electromagnetic advanced technology; good interference, low power consumption, high precision, high overload, high stability, long life, anti theft.

Main technical parameters

Item

Technical data

Accuracy class

1 class、2class

Voltage specification

220V

Current specifications

1.5(6),5(20),5(30),10(40),5(60),15(60),20(80),30(100)

Reference frequency

50Hz60Hz

Operating voltage range

Limiting operating voltage range:0.9Un1.3Un

Operating temperature range

Specified operating temperature range:-25 ~+55

Working environment humidity

relative humidity95%

Overall power consumption

≤2W/10VA

Outline dimension

88mm×75mm×68mm(In order to prevail in kind)

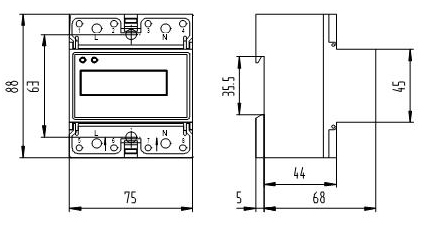

Outline overall and installing dimensions

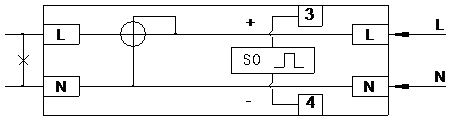

wiring diagram
